How to send sensor data from MESH to IFTTT

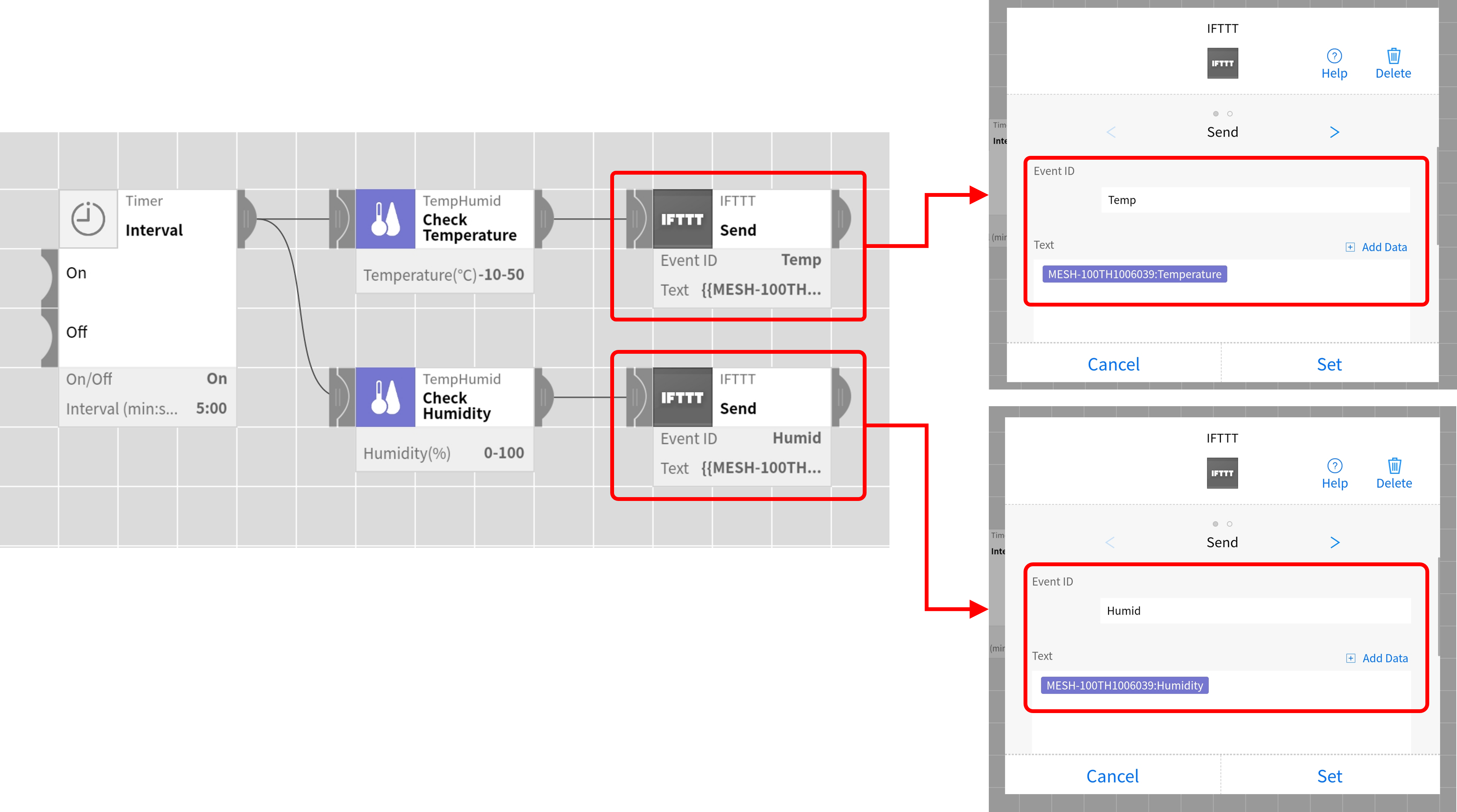

1. Create a recipe to send sensor data to IFTTT as follows.

  • Set [Event ID] in the IFTTT block settings.
  • Tap [Add Data] and set the sensor data to [Text].

In this example, temperature and humidity are each sent to IFTTT at regular intervals. Please change the settings according to the type of sensor and the intended use.

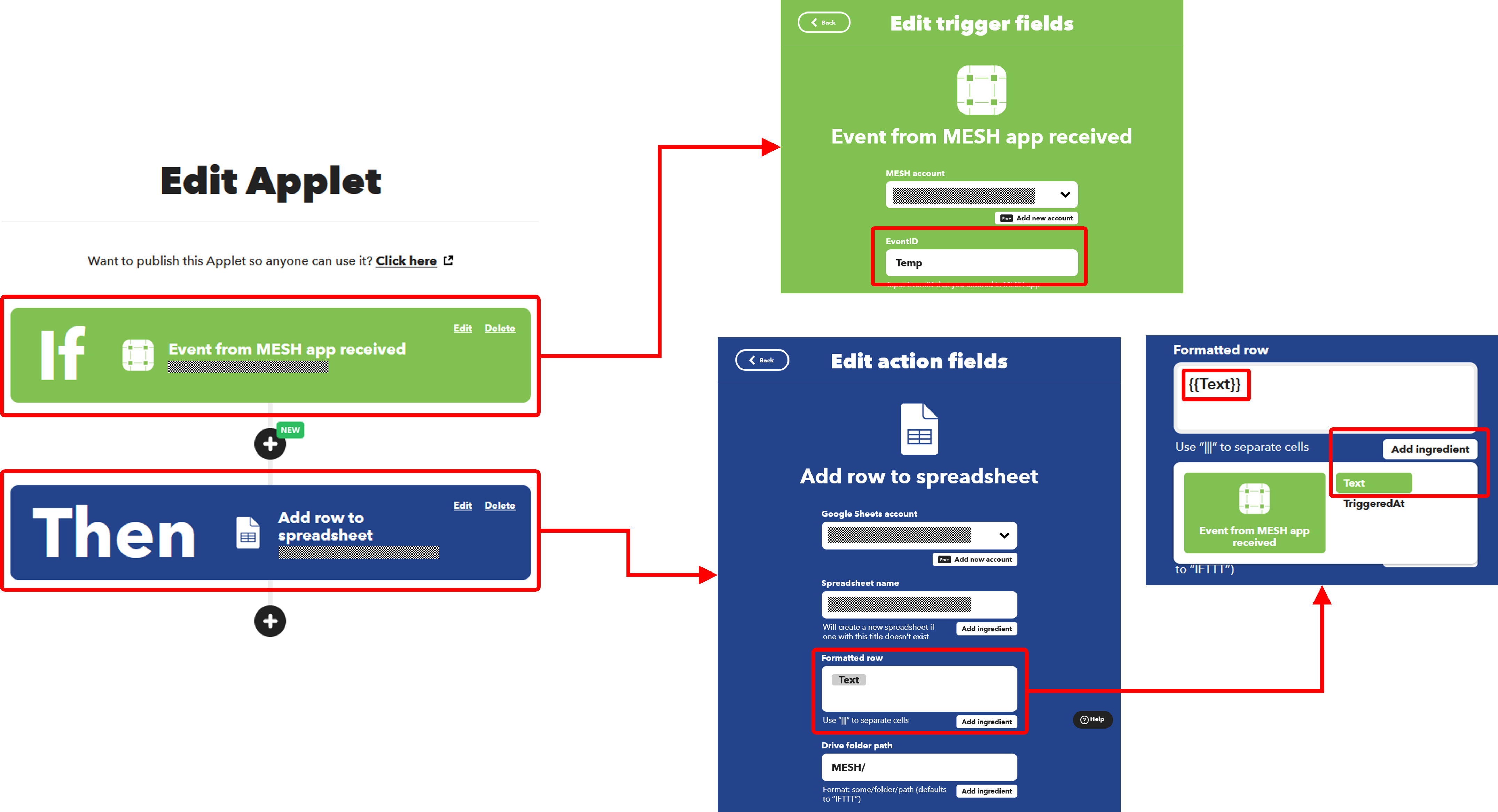

2. Create an applet on IFTTT.com as follows

  • Set the same [event ID] as that set in the MESH app.
  • Set the input data to {{Text}} by [Add Ingredient].

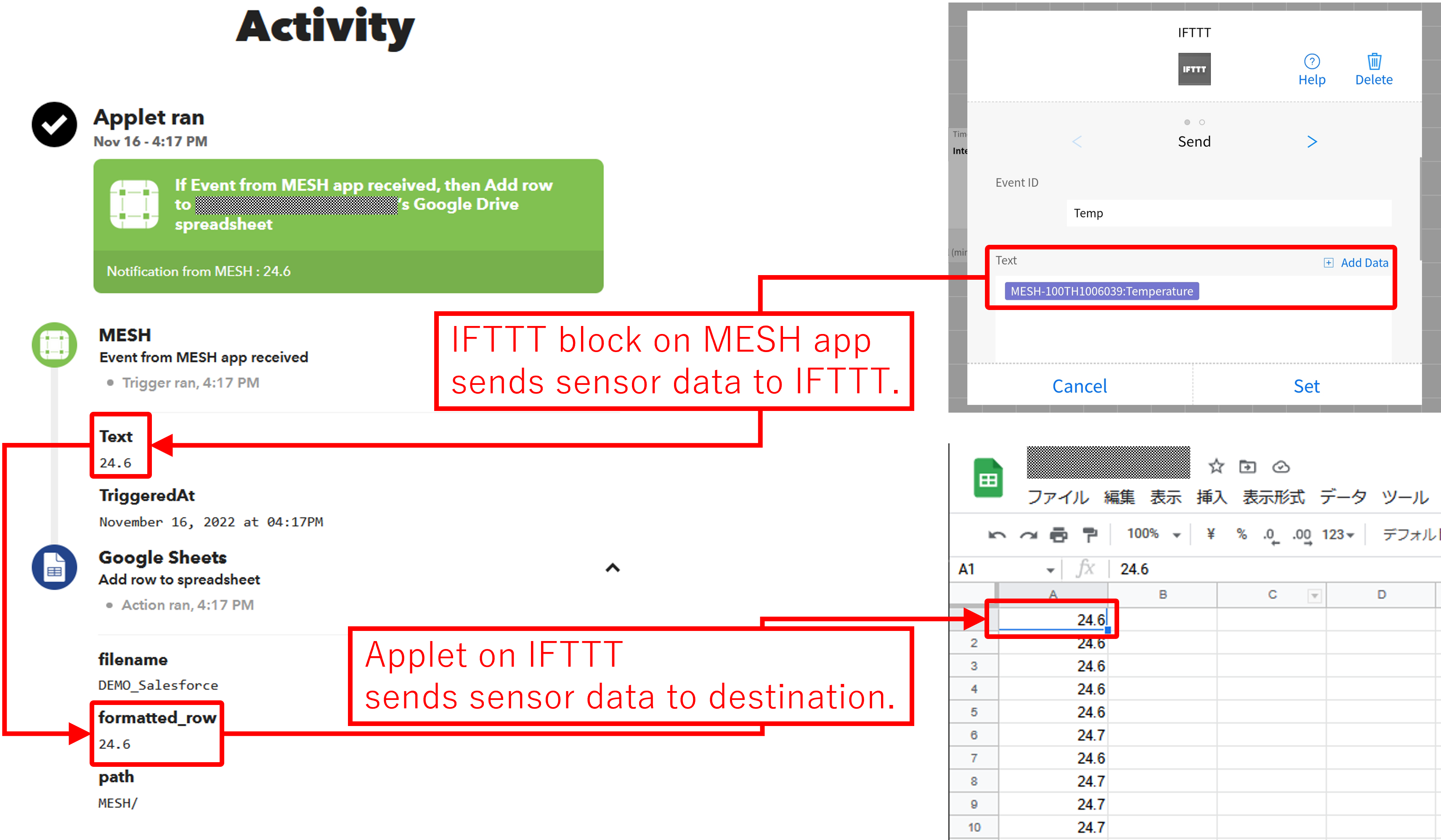

3. Test that the data is passed correctly.

  • Please see [Activity] of the IFTTT applet you created for the execution result.
